Paving Fabrics

MoRTH-approved product that can be included within a paving project to improve the life-cycle performance of roads and ensure a smoother ride for motorists. Two pavement interlayer’s or bituminous nonwoven geotextile paving fabrics. These products must meet the Ministry of Road Transport & Highways (MoRTH) standards, specifically 700 specifications, which set forth a set of physical, mechanical, and endurance properties that must be met, or exceeded, by the manufactured geotextile. These specifications are intended to assure both good quality and performance of geotextiles used on our roadways

Benefits of Rajdhani Syntex Geotextile Paving Fabrics-

1.  Provides a moisture barrier for base and sub grade reinforcement protection.

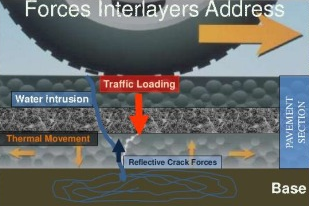

2. Creates a stress-relieving membrane between the existing pavement and new asphalt overlay.
3. Retards the propagation of existing cracks through a new overlay to provide reflective crack control.
4. Extends the useful life of the overlay

The use of Rajdhani Syntex paving fabrics is ideal for the following locations:

• Public streets or highways
• Parking lots
• Bridges
• Recreational paths.
• Playgroups

Surface water infiltration into paving joints and improperly compacted pavements can be reduced through placement of an approved paving fabric.

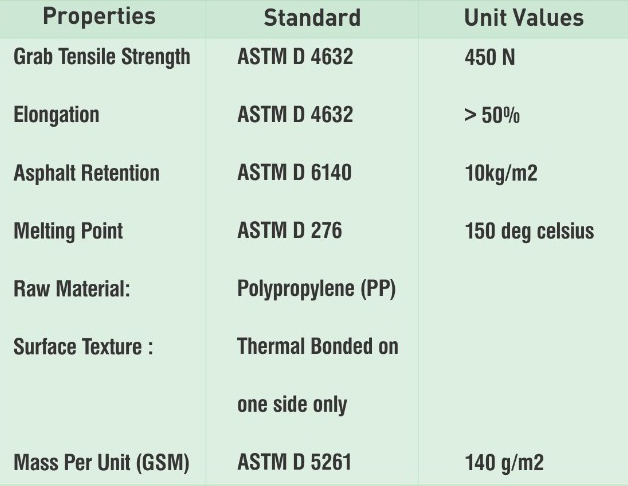

TECHNICAL SPECIFICATIONS OF PAVING FABRIC (AS PER MORTH 700) MECHANICAL PROPERTIES

For the optimization and improvement process of the technical characteristics of the products, the producer reserves the right to modify standard characteristics of the product without any notice. The information contained herein is accurate to the best of our knowledge, but since the circumstances and conditions in which it may be used are beyond our control, we do not accept any liability for any loss or damage, whatsoever, which results directly or indirectly from the use of such information nor do we offer any warranty or immunity against patent infringement
